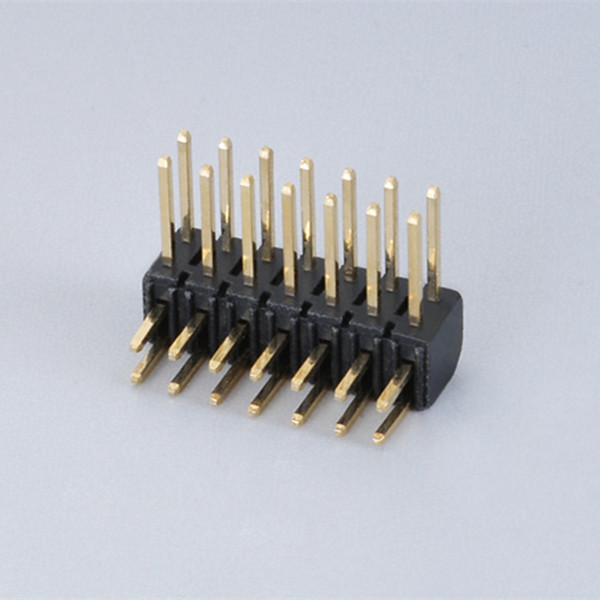

Double Rows Pin Male Header PCBA Assembly Connector

Double Rows 90degree Pin Male Header PCBA Assembly Connector 2.0mm Pitch Pin Male Header-Height:4.0mm Double Row 90° Specification Description: Model No.: row of pins 2.0mm pitch H: 4.0 Double row 90° Plastic height: 4.0mm Pin position: 2*2P～2*40P Material: Pin material: brass Plating of pin: gold plated on nickel base/tin plated on nickel base Plastic material: PBT,UL94V-0/PA6T,UL94V-0 Plastic colour: black   Electrical Characteristics: Rated current: 2.0 Amp Contact impedance: 20mΩ Max Insulation Resistance: 3000MΩ Min @ 500V DC Withstanding Voltage: 500V AC/1min  Mechanical Characteristics: Quadrature pin size: 0.50mm SQ Operating temperature: -40°C to +105°C Soldering temperature (PBT material): 230+/-5°C, time: 5+/-0.5 sec. Soldering temperature (PA6T material): 260+/-5°C, time: 5+/-0.5 sec. Solderability (PBT material): more than 90% of the soldered area @ Temperature: 230+/-5°C, Time: 3+/-0.5sec Tin-on-t…
