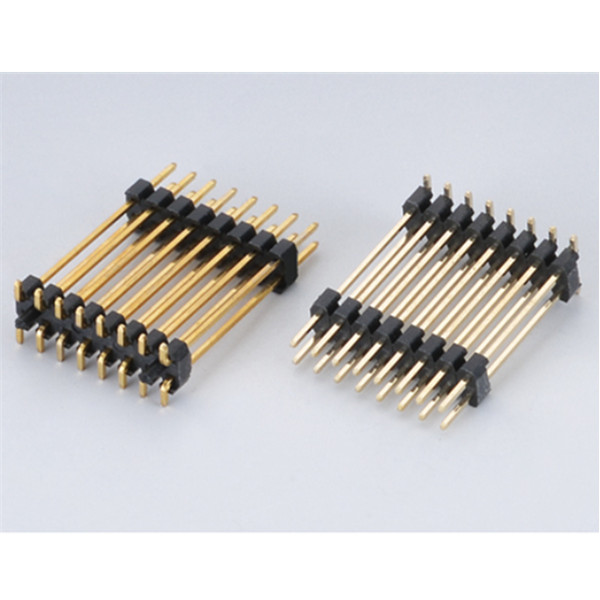

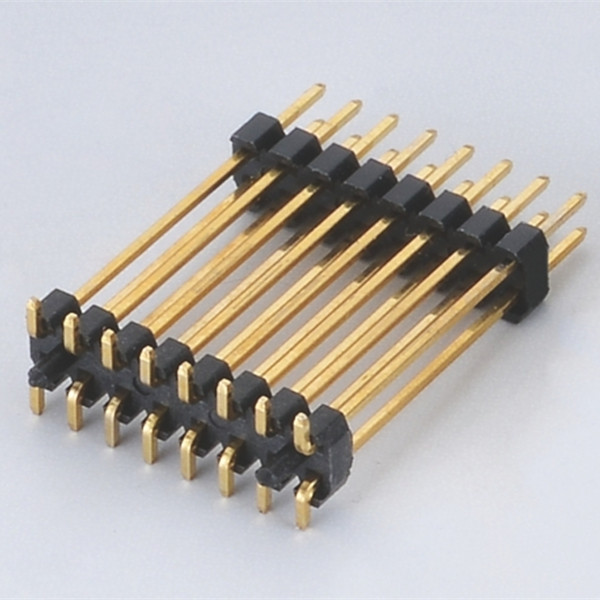

Double Plastic PCB SMT Pin Male Header Connector

Double Plastic PCB SMT Pin Male Header Connector 2.0mm Pitch Pin Male Header Connector-Double Row SMT Double Plastic Pin Male Header Connector Specification Description: Product type: row of pins 2.0mm pitch double row SMT double plastic Plastic height: 1.0mm/1.5mm/2.0mm pin position: 2*1P ~ 2*40P Pin connector material: Pin material: brass Plating of pin: gold plated on nickel base/tin plated on nickel base Plastic material: PA6T,UL94V-0 Plastic colour: black    Electrical Characteristics of Pin Header Connector: Rated current: 2.0 Amp Contact impedance: 20mΩ Max Insulation impedance: 3000MΩ Min @ 500V DC Withstanding voltage: 500V AC/1min  Mechanical Characteristics of Pin Header Connector: Quad pin size: 0.50mm SQ Operating temperature: -40°C to +105°C Soldering temperature (PA6T material): 260+/-5°C, time: 5+/-0.5 sec. Solderability (PA6T material): more than 90% of the soldered area @ Temperature:…
