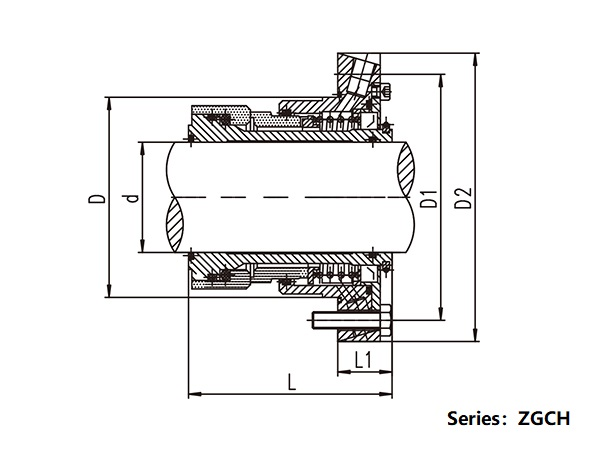

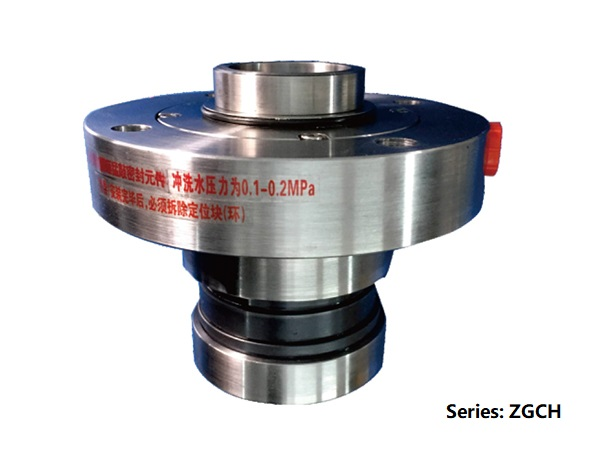

Slurry Cartridge Mechanical Seal

Applications Our Slurry Seal Type ZGCH can be used to seal any slurry pump working in power, metallurgy, chemical, salt, lithium, alumina and other industries. Operating Parameters l Medium: crystalline slurry l Pressure:  ≤2.5Mpa  l Temperature: ≤130℃  l Solid content: ≤40 %  l Linear velocity: ≤10m/sec  l Shaft diameter: 24mm to 130mm    Features l External flush l Excellent anti-clogging ability l Standing spring protected structure l Cooling water pressure: ≤0.05-0.1MPa
