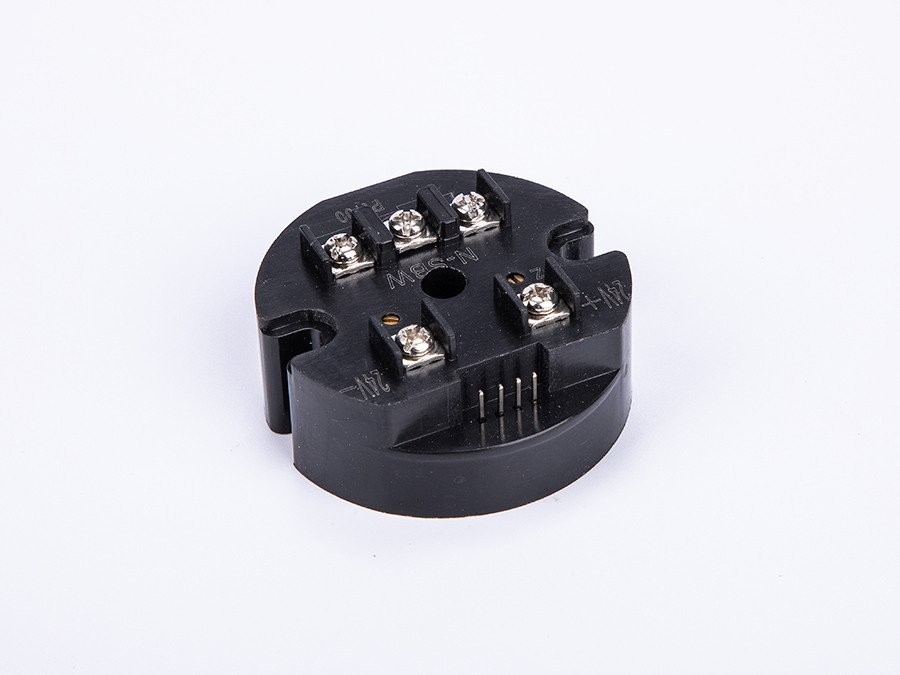

SBW-02 Thermal Resistance Temperature Transmitter

SBW-02 Thermal Resistance Temperature Transmitter Ⅰ、General introduction  SBW series temperature transmitter, is a field installation temperature-transmission        unit, using two-wiring transmission system (power input and signals output for the two utility wires), output is with the measured temperature of a linear 4 ~ 20 mA current signal . Transmitter can be installed with the cable box of the thermocouple, heat resistance ,with the formation of integrated structure, but also as a functional module installed in the testing equipment. Thermocouple transmitter have cold-temperature with automatic compensation. SBW series temperature transmitter wider apply in industrial areas, to automate testing, transmission and control. Ⅱ、Main technical specification 1.Measurement precision:±0.5%F.S 2.Input type: K、E、J、S、B、T、PT100、CU50 3. Output (two-wiring): output 4 ~ 20 mA in the range…
