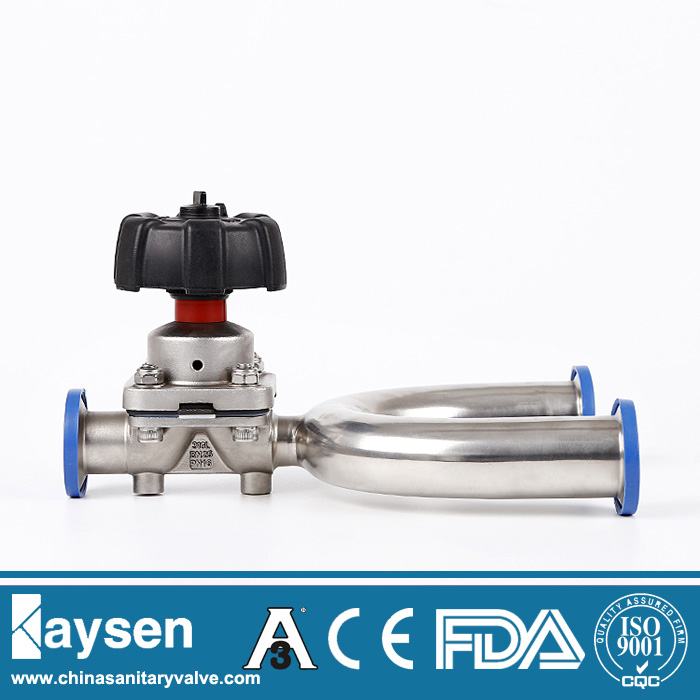

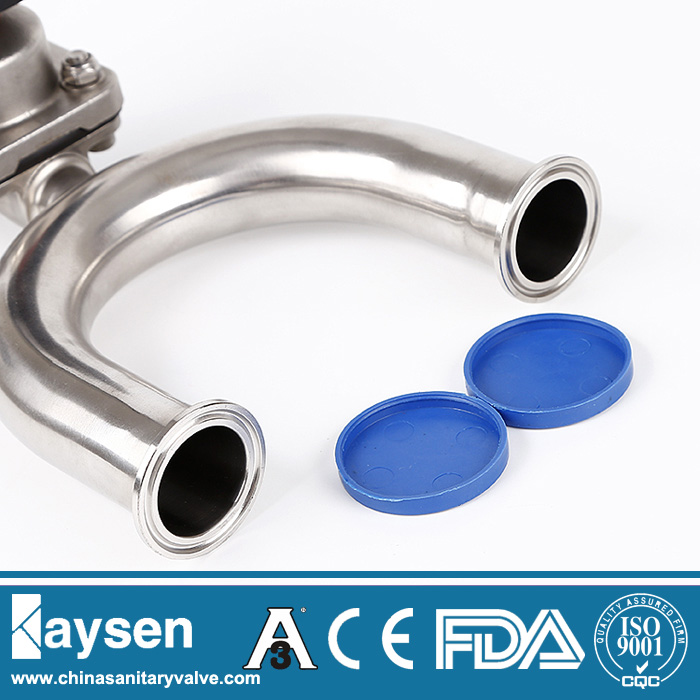

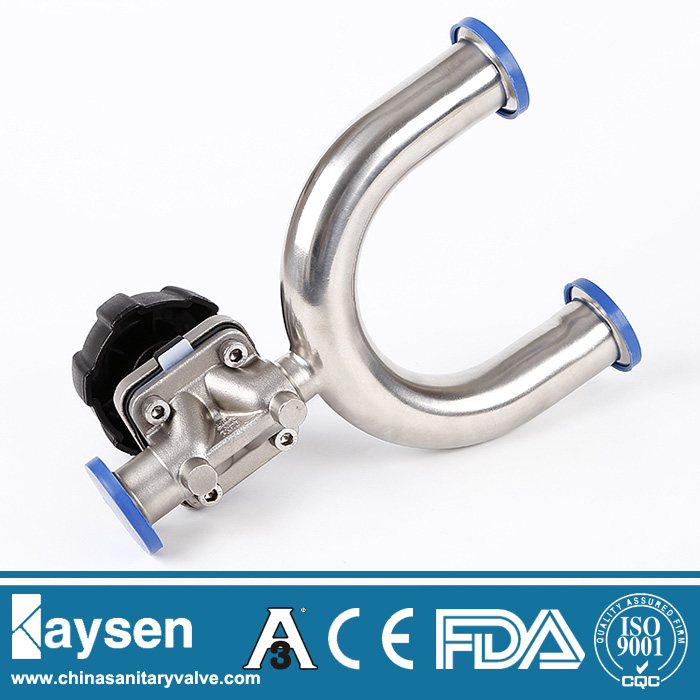

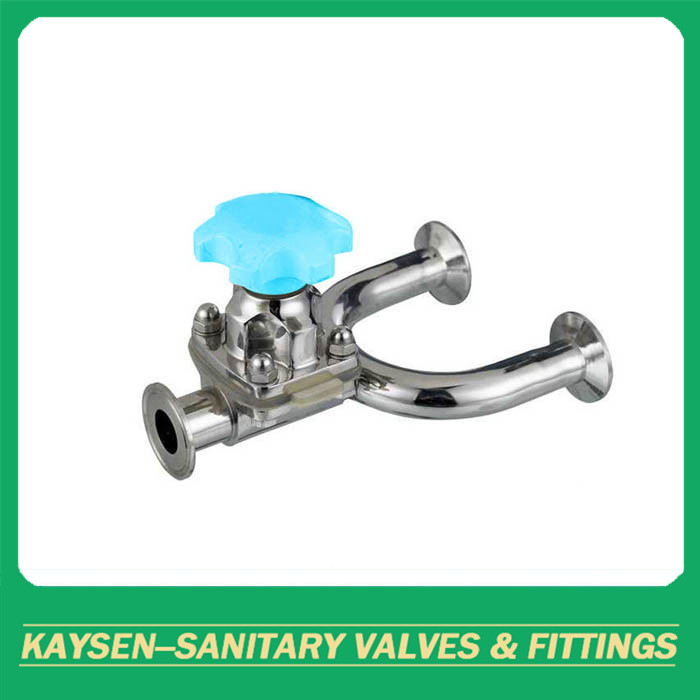

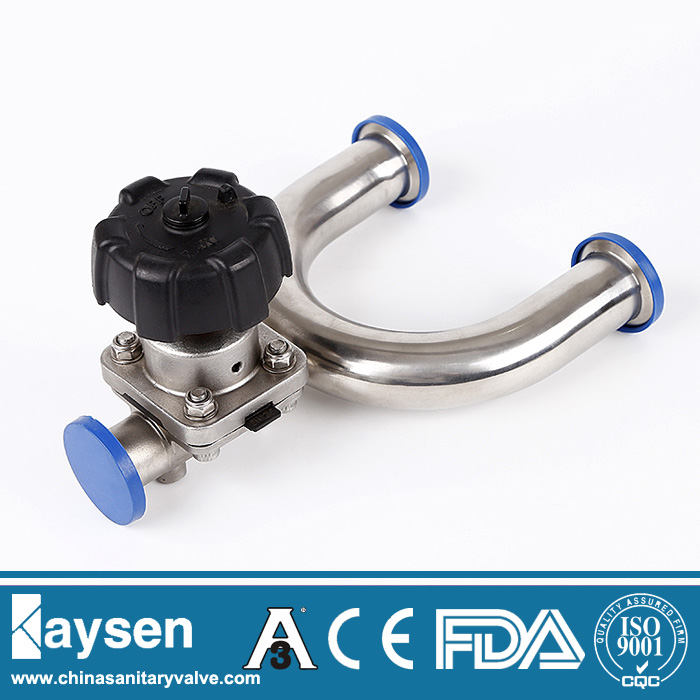

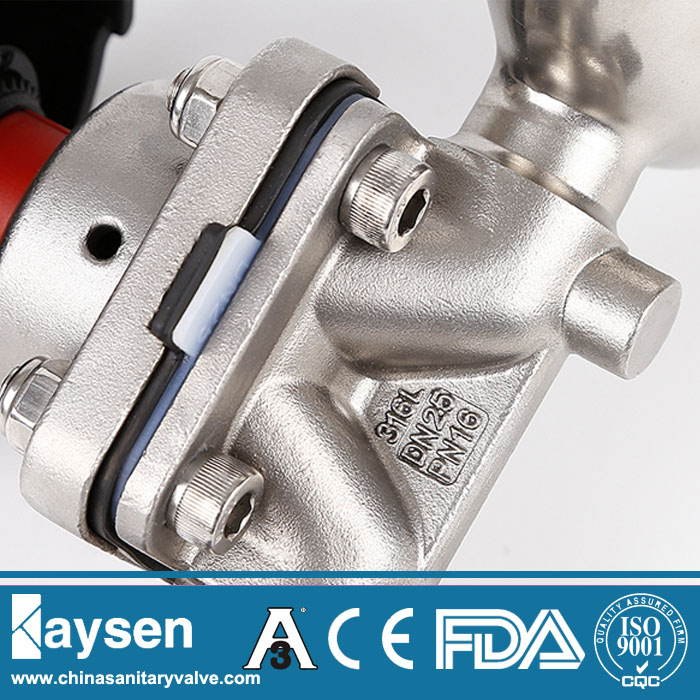

Sanitary U Type Diaphragm Valves Clamp Ends

Sanitary U Type Diaphragm Valves with Tri Clamp Ends is a manual type sanitary U TYPE diaphragm valve,  it is 3 ports diaphragm valve, the valve body is forged in stainless steel T304 and T316L, and size from 1″ to 2″.which is widely used in food, beverage, dairy, brewing, pharmaceutical industries, etc. It is excellent for flow control as well as for open/close duties. Kaysen is able to supply the Sanitary U Type Diaphragm Valves with from 1"-2" of DIN and SMS standard,commonly is manual or air operation. Sanitary U Type Diaphragm Valves with Tri Clamp Ends Size: 1" to 2"  Material: Stainless Steel 304,Stainless Steel 316L standards: 3A, DIN, SMS, ISO, IDF, BPE, RJT etc. End Connection: Tri-clamp, Butt-weld Valve body: AISI 316L. Valve seat: EPDM+PTFE Max. working pressure: 145psi (10bar) Working temperature range: -22 ~ 266°F (-30 ~ 130°C), or higher upon request. Inside surface treatm…
