Outdoor Fiber Cable GYXTW 12 Core

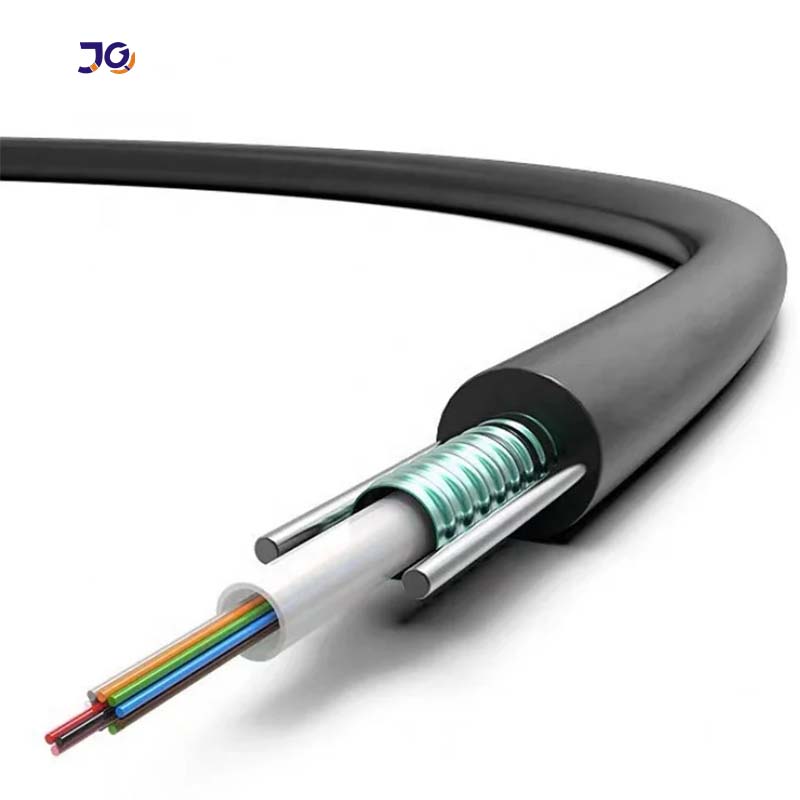

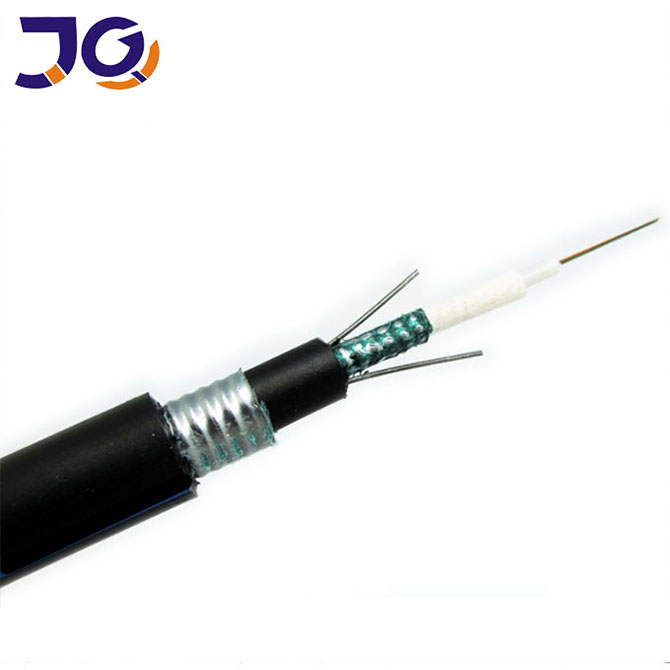

Uni-tube Fiber Optic Cable 12 Cores   GYXTW Fiber optic cable involves 250μm optical fibers into a loose tube filled with a waterproof  compound.water blocking tape is placed between the steel tape and loose tube to insure the cable's compactness and longitudinal water blocking.this type is  widely  used for long-distance communication and inter-office communication Specification: Item  GYXTW Fiber optic cable 12 cores Fiber type G652D Single mode Attenuation Coefficient 1310nm dB/km ≤0.35 Attenuation Coefficient 1510nm dB/km ≤0.22 Tension（Long Term） 600N Tension（ShortTerm） 1500N Crush（Long Term）N/10cm 300 Crush（Short Term）N/10cm 1000 Min. Bend Radius（Dynamic）mm 20D Min. Bend Radius（Static）mm 10D Operating temperature -40～+70℃ Cable diameter 6/7/8/9mm
