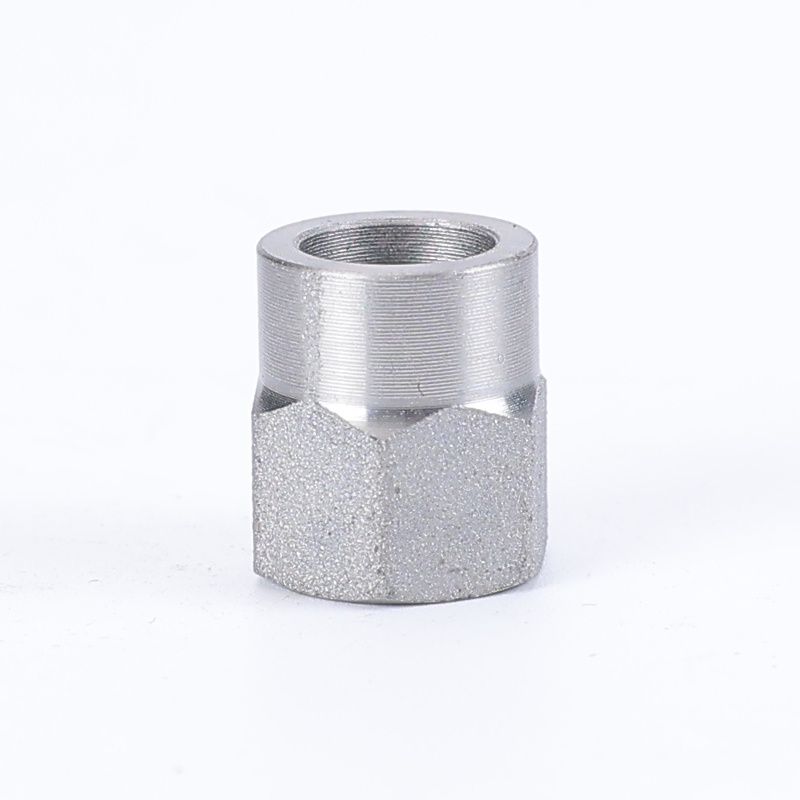

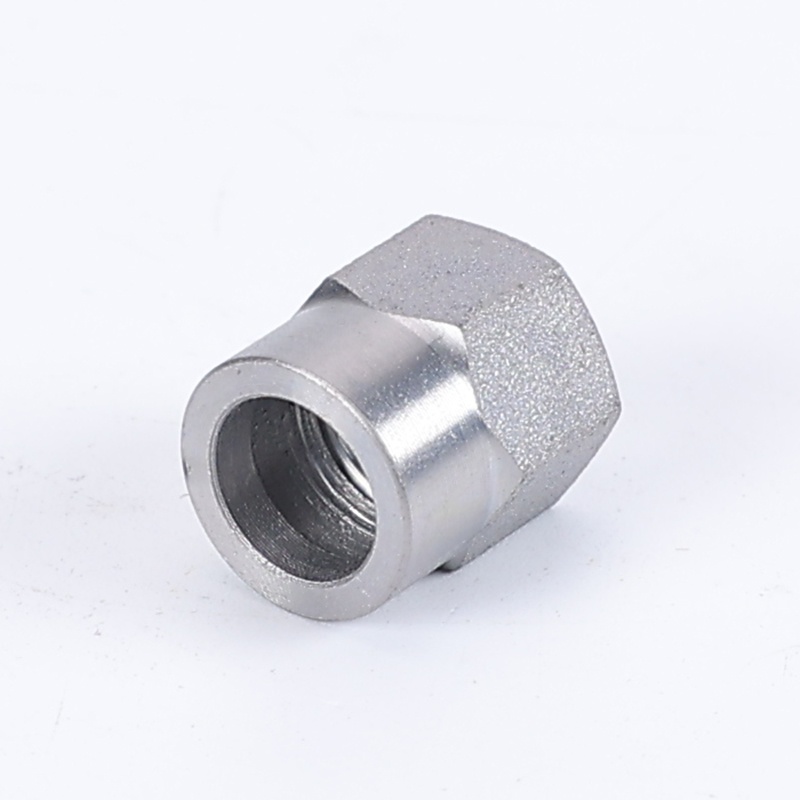

Metal Quick-Connect Stainless Steel Push in Fitting

Material: High pressure carbon steel with zinc trivalent anti-corrosion coating per J514 standard. Flareless compression tube fittings come fully assembled with tube nuts and ferrules. These fittings are used with hydraulic tubing that cannot or does not need to be flared. Product Details Flareless Compression Tube Fittings The male fitting has straight threads and a 24° seat. The female connection uses a tube, tube nut, and bite-type sleeve. When the tube nut is tightened the seal is made between the sleeve and 24° seat. A seal is also made between the sleeve and the tubing. The threads hold the connection mechanically.  Product name   transition joint Material Carbon steel,Brass,Stainless steel,etc Classification JIC/ORFS Male Fitting Thread JIC/ORFS Usage Hydraulic F…
