ANSI B16.5 Pressure Class150 Plate Flange

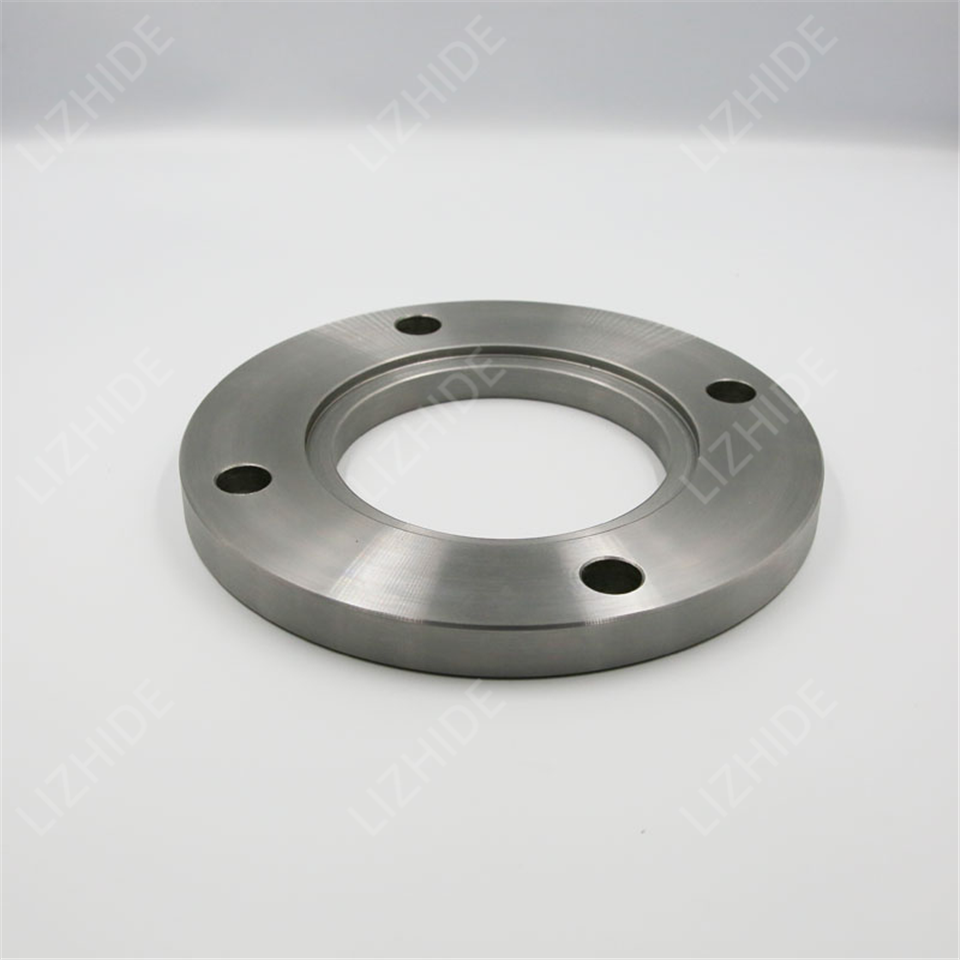

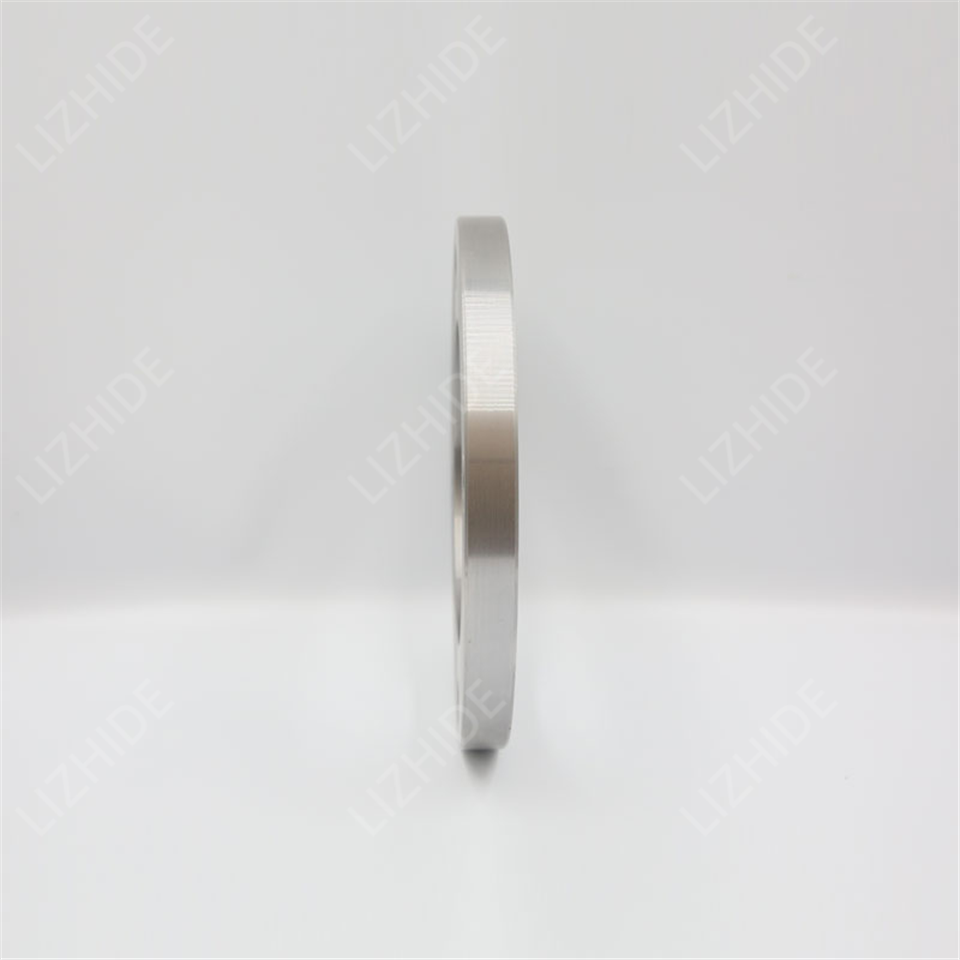

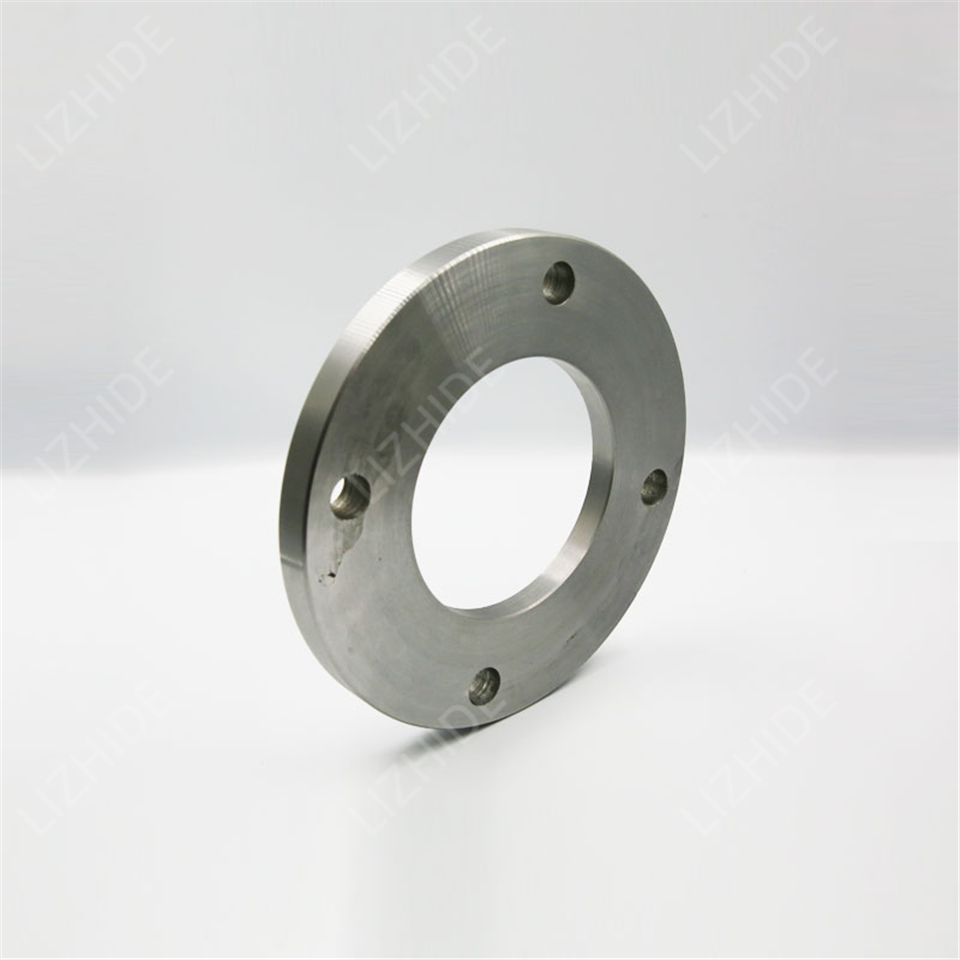

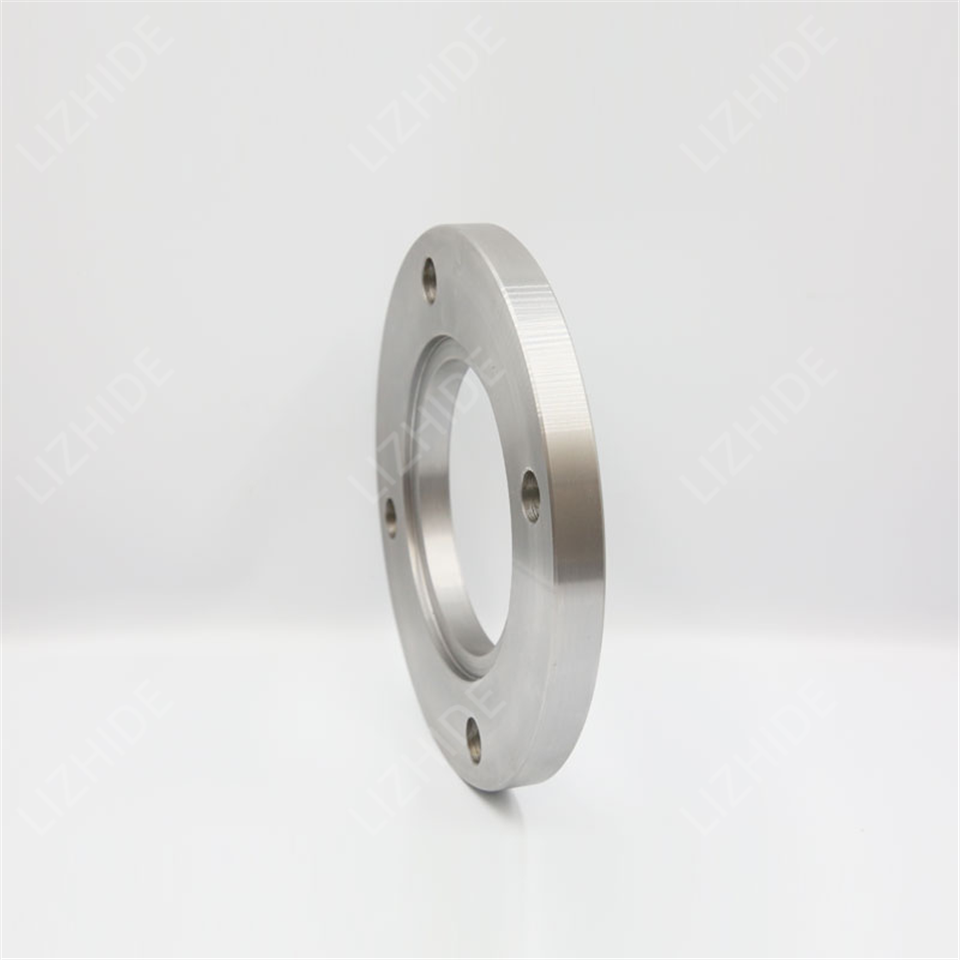

ANSI B16.5 Pressure Class150 Plate Flange The forged steel plate flange is the most common flange. The welding form is to insert the pipe into the flange to weld. Forged steel plate flange is convenient to obtain materials, simple to manufacture, low in cost, and widely used. Due to the good comprehensive performance of plate-type flat welded flange, it is widely used in basic projects such as chemical industry, construction, water supply, drainage, light and heavy industry, freezing, sanitation, electric power, aerospace, etc. Parameters: Type: Plate flange Pressure: 1) ANSI B16.5: CLASS150. 300. 600. 900.1500. 2500 2) JIS 2220: 1K. 2K. 5K.10K.16K. 20K. 30K 3) DIN/GOST/EN1092/BS4504: PN6. PN10. PN16. PN25. PN40. PN64. PN100 4) SABS1123: 600Kpa.1000Kpa.1600Kpa. 2500Kpa. 4000Kpa Model: 1) ANSIB 16.5: 1/2-60” 2) JIS 2220: 15A-1500A 3) DIN/GOST/EN1092/BS 4504: DN10-DN2000 4) SABS 1123: DN10-DN600 Material: Q…
