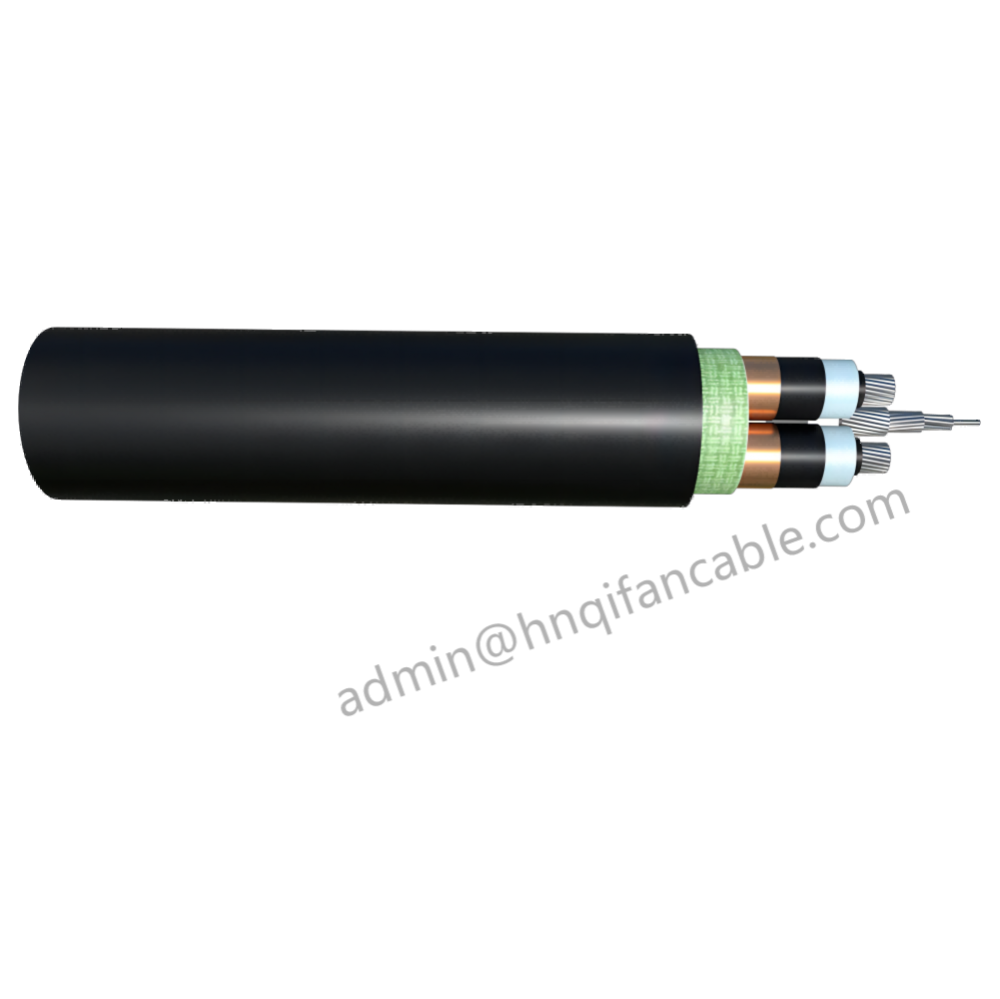

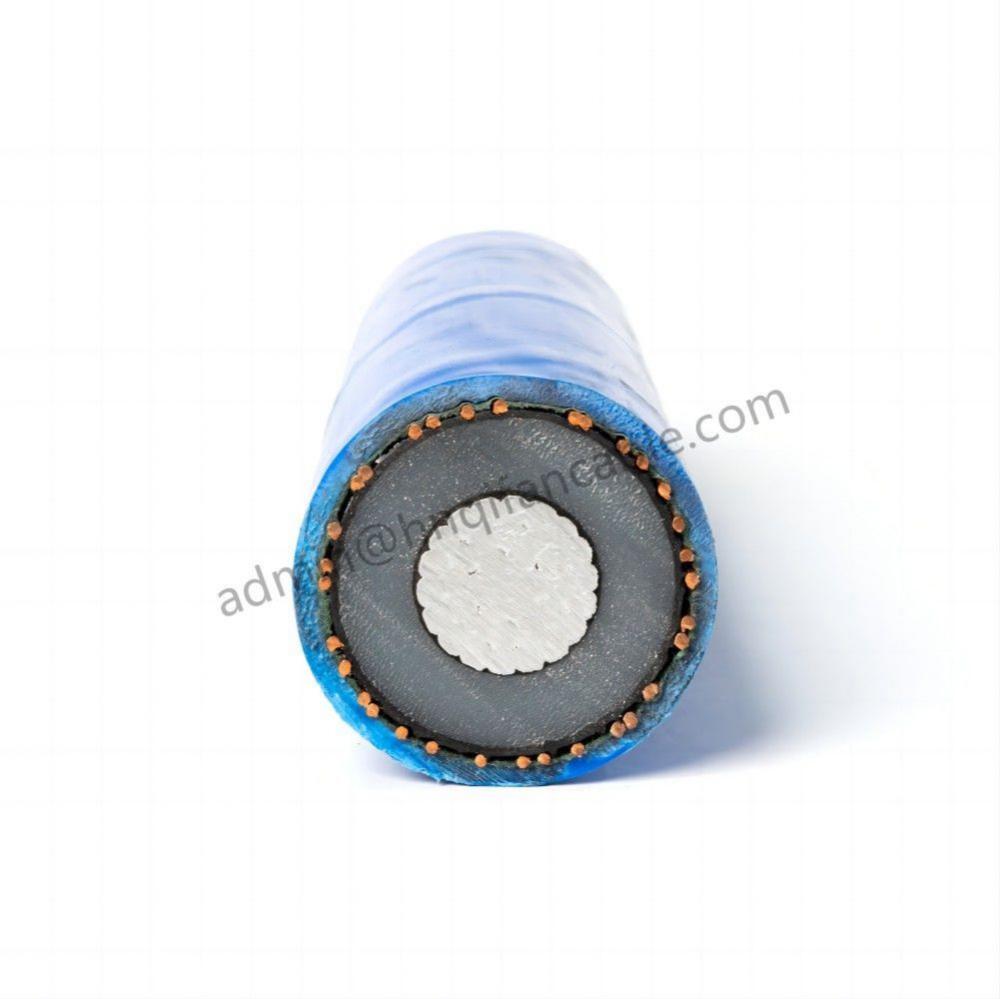

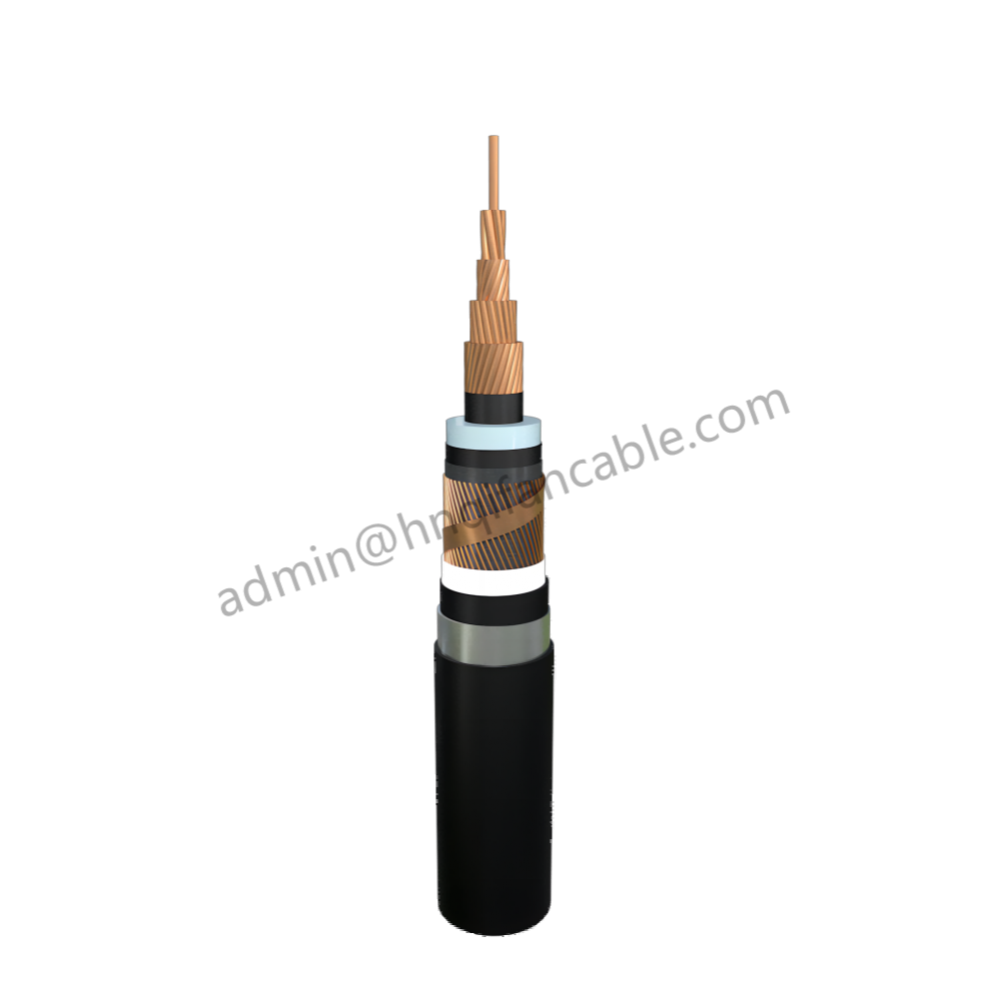

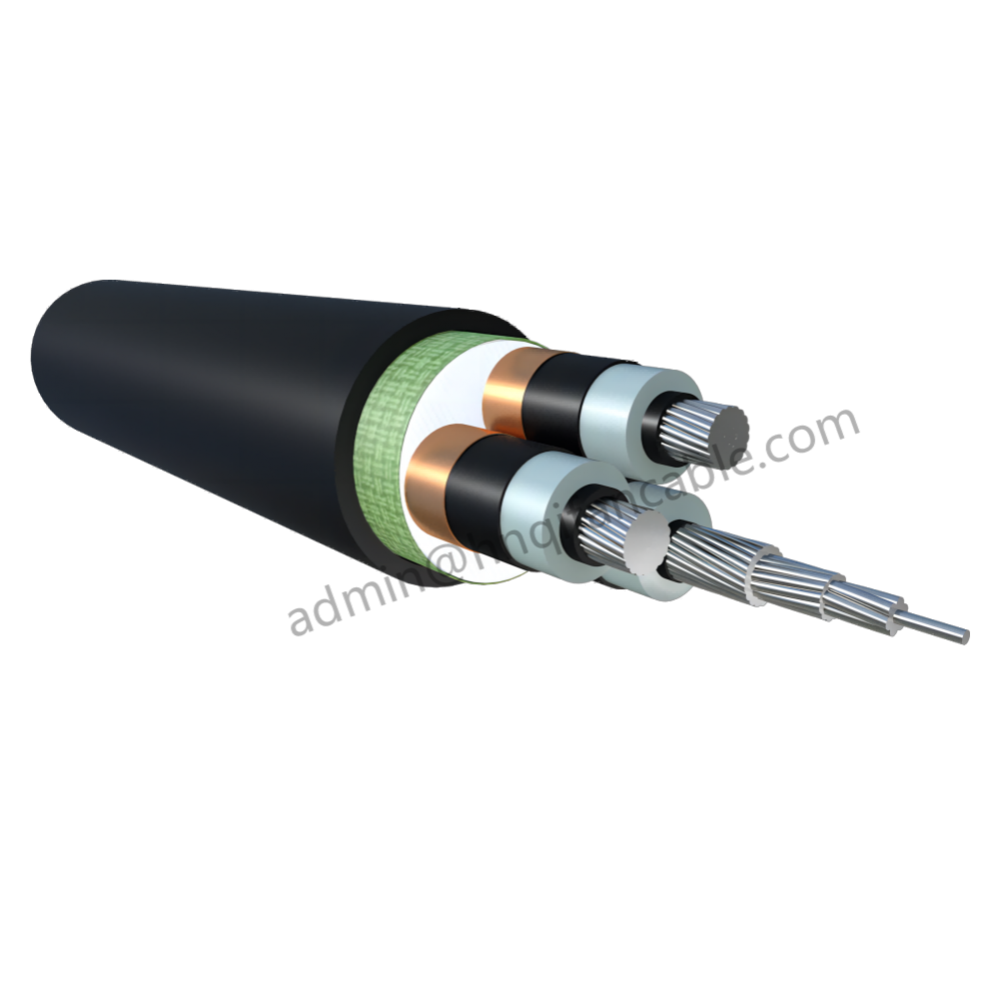

5KV to 46KV Medium Voltage Cable Application: Medium voltage power cables are apply for power transmission and distribution line at AC rated voltage up to 46kV. Applicable standards: IEC60502-2, BS6622, SANS1339, AS/NZS1429.1, DIN VDE 0276-626, NFC 33-226, IEC60840, ICEA S-93-639,ICEA S-94-649, HD620,CSA C68.10or the standards agreed by both of the customers and us. Construction: Conductor: IEC60228 class 1 class 2 bear copper/Aluminum etc Conductor Screen: Semi-conducting compound Insulation: XLPE or EPR Insulation Screen: Semi-conducting compound Core: 1core or 3cores Shield: Copper wire/ Copper tape/AL plastic tape/Aluminum tape Inner Sheath( optional): PVC PE LSZH CPE Armoured ( optional): Galvanized steel wire/Aluminum wire/Two layers of Aluminum tapegap-wrapped /Two layers of steel tape gap-wrapped / Galvanized…
