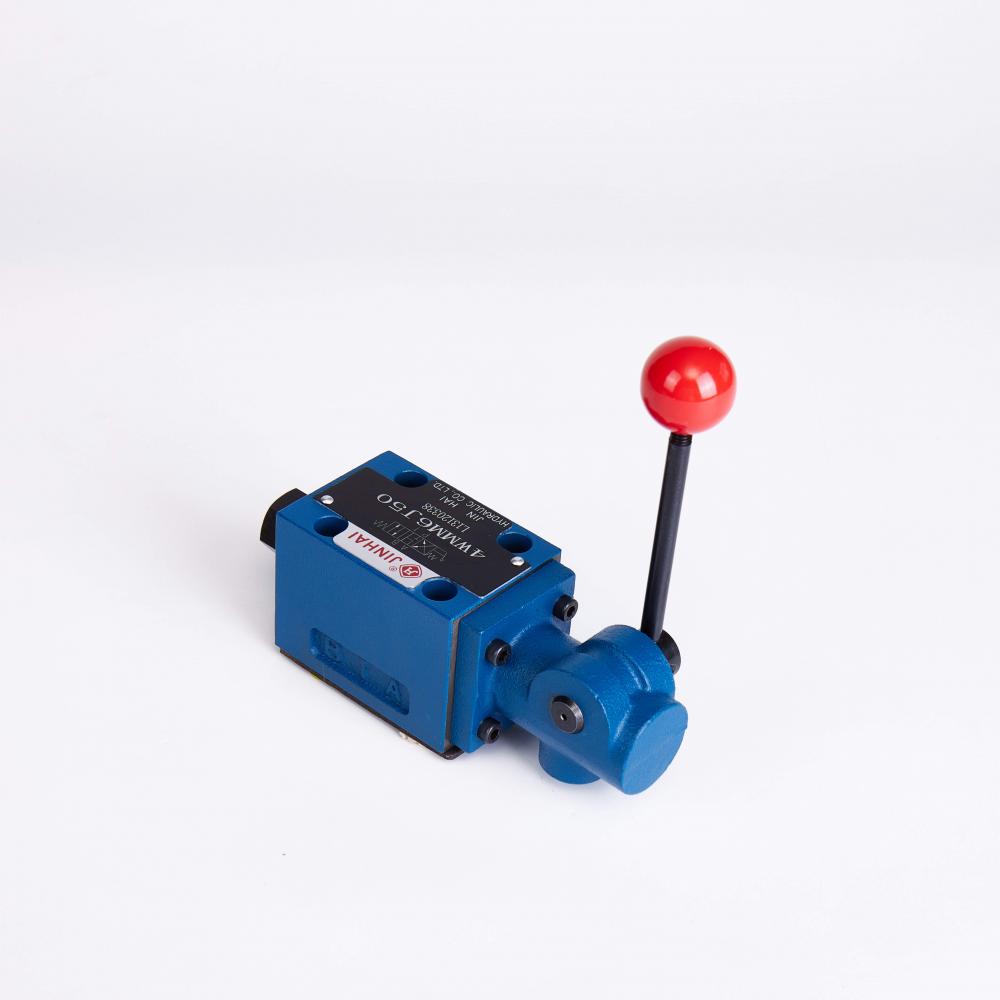

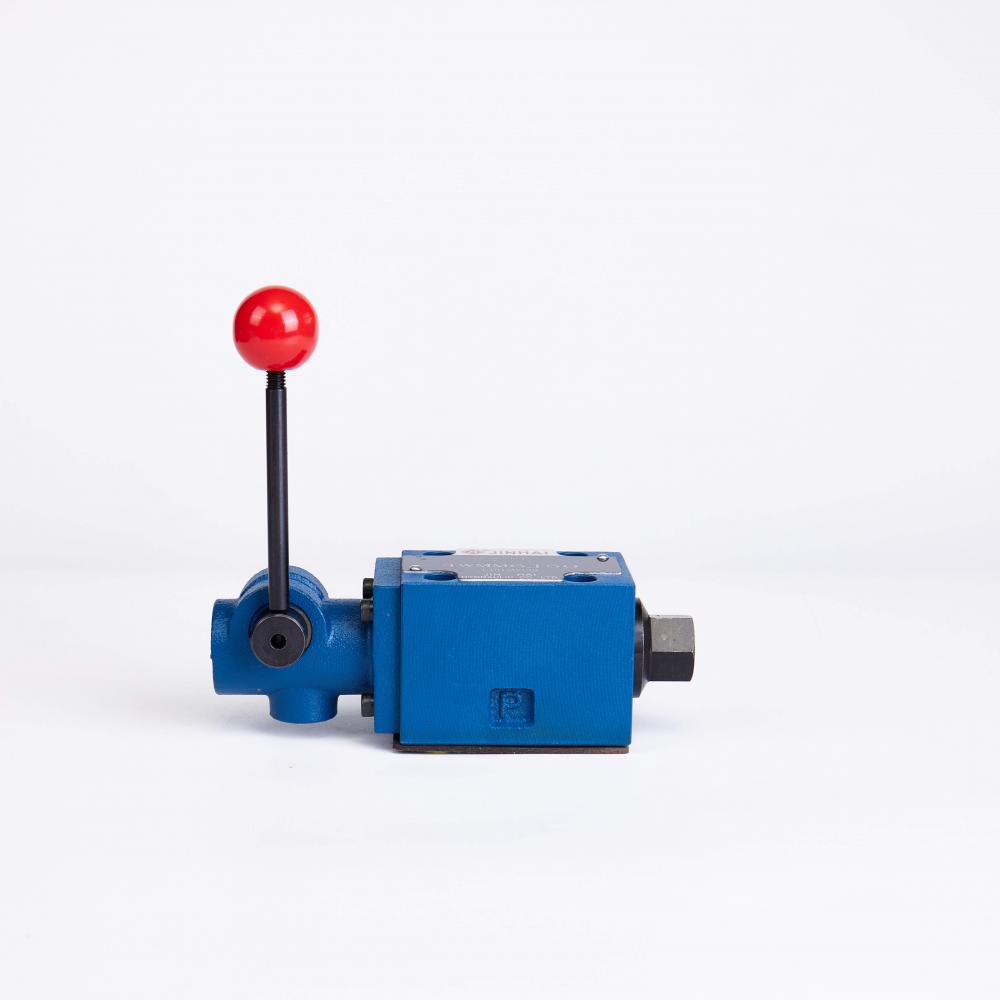

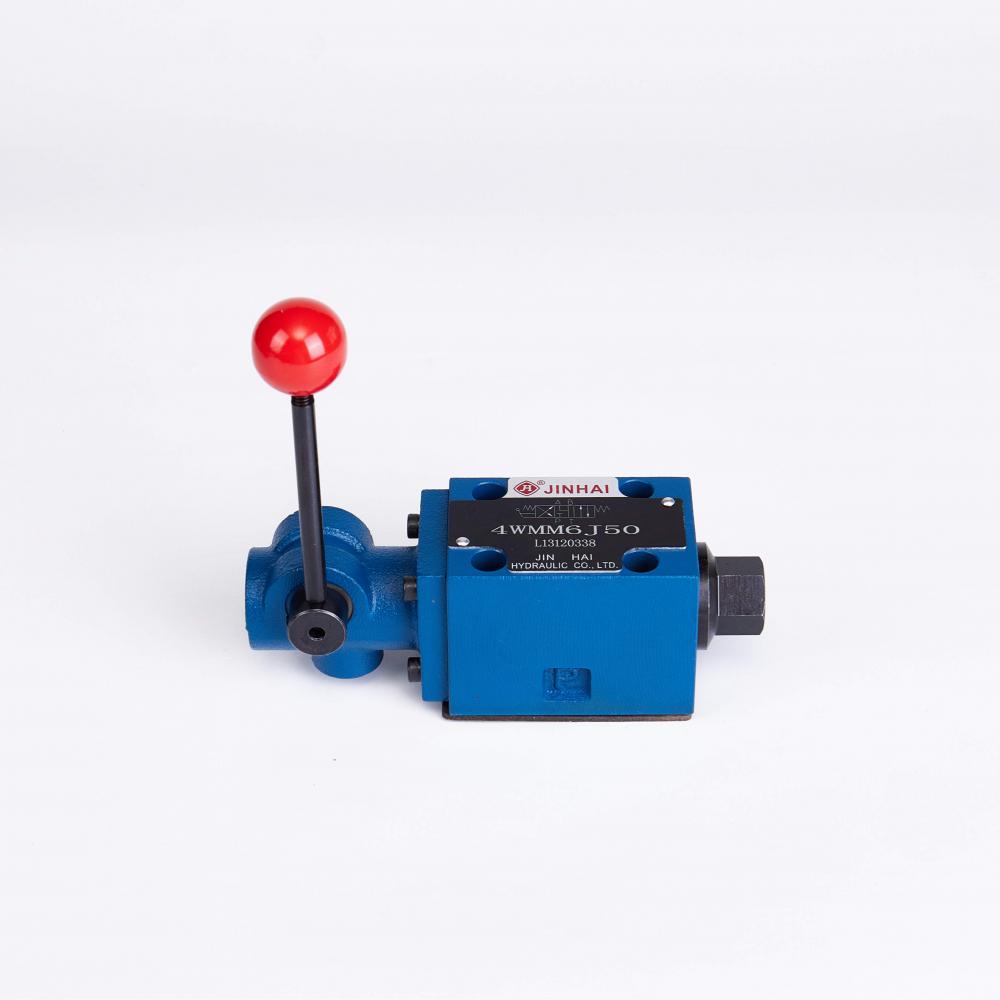

4WMM6 manual directional control valve

WMM type manual reversing valve Orifice (NG) 6, 10, 16 Pressure up to 35MPa Flow rate up to 300L/min -- Direct-acting directional spool valve operated by handle -- Optional with return spring or detent -- Plate connection -- There are 46, 19, 18 slide valve functions (diameter 6, 10, 16) Jinhai is professional manufacturer of Various types of Directional Valves, Flow Valves, Pressure Valves and Accessories, Should you have any questions please feel free to come back to us. WMM type manual reversing valve is a direct-acting reversing slide valve that moves the spool axially through the rotation of the handle to switch the oil circuit. It has multiple slide valve functions of two-position three-way, two-position four-way and three-position four-way, and can choose positioner and spring return device. Using plate connection. 4WMM*****/type The valve is composed of one or two return springs and push rods, which are controlled by the h…
